Prevent your servo's from overheating and accidental damages!

The tiny RC voltage switch enables you to select the desired voltage on your Jevries SBEC using a free channel (4) on your radio.
Switch from 9V to 12V for when you want to hit backbumper hard and switch back to 9V for driving, hopping while driving, lifting lowering etc.
It can prevent your servo's from overheating and accidental damages.

Parts needed:
- Jevries SBEC
- Wired Harness 2 servo's to 1 channel to free up channel 4.
- USB servo programmer to set one servo to reverse

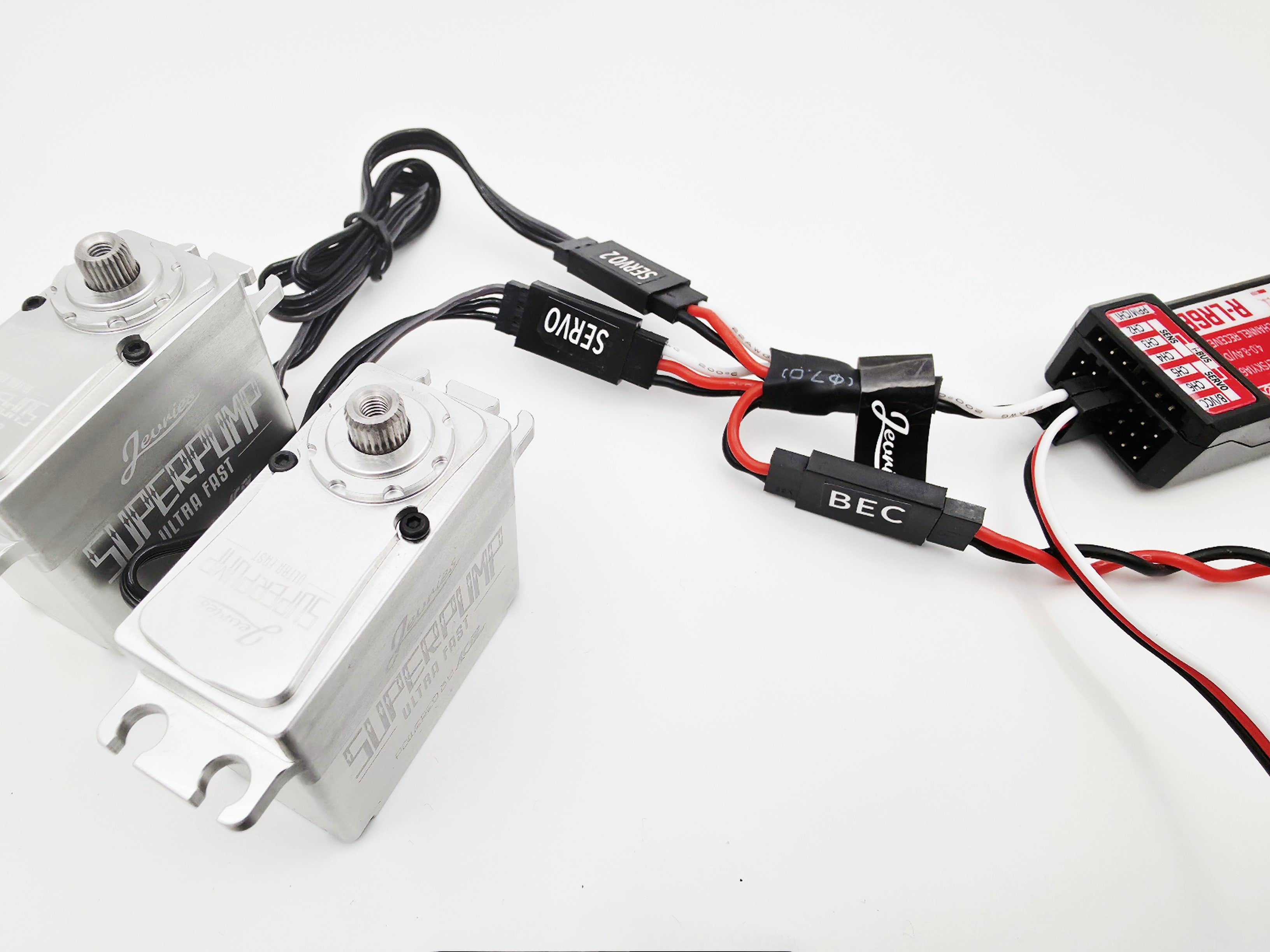

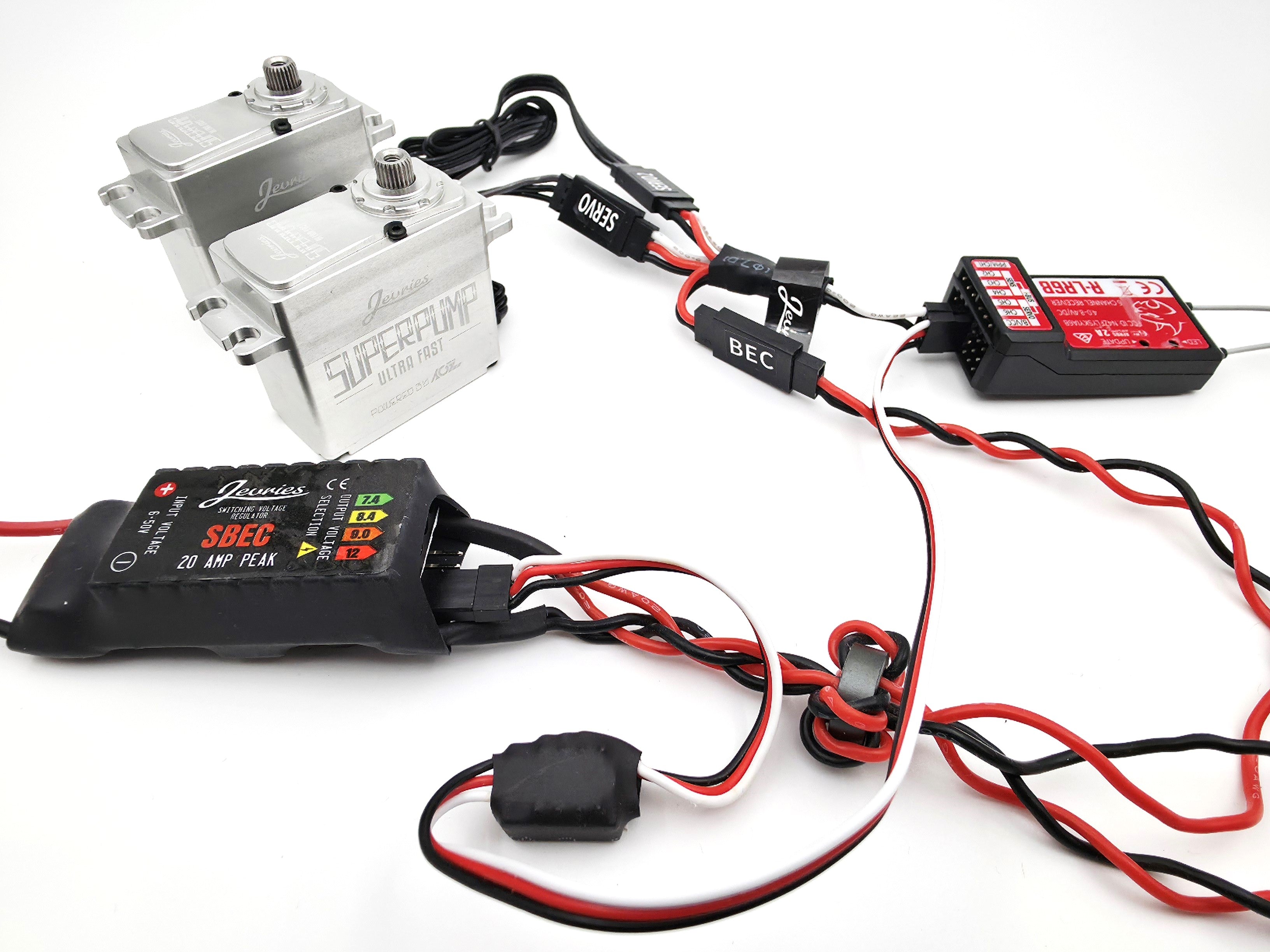

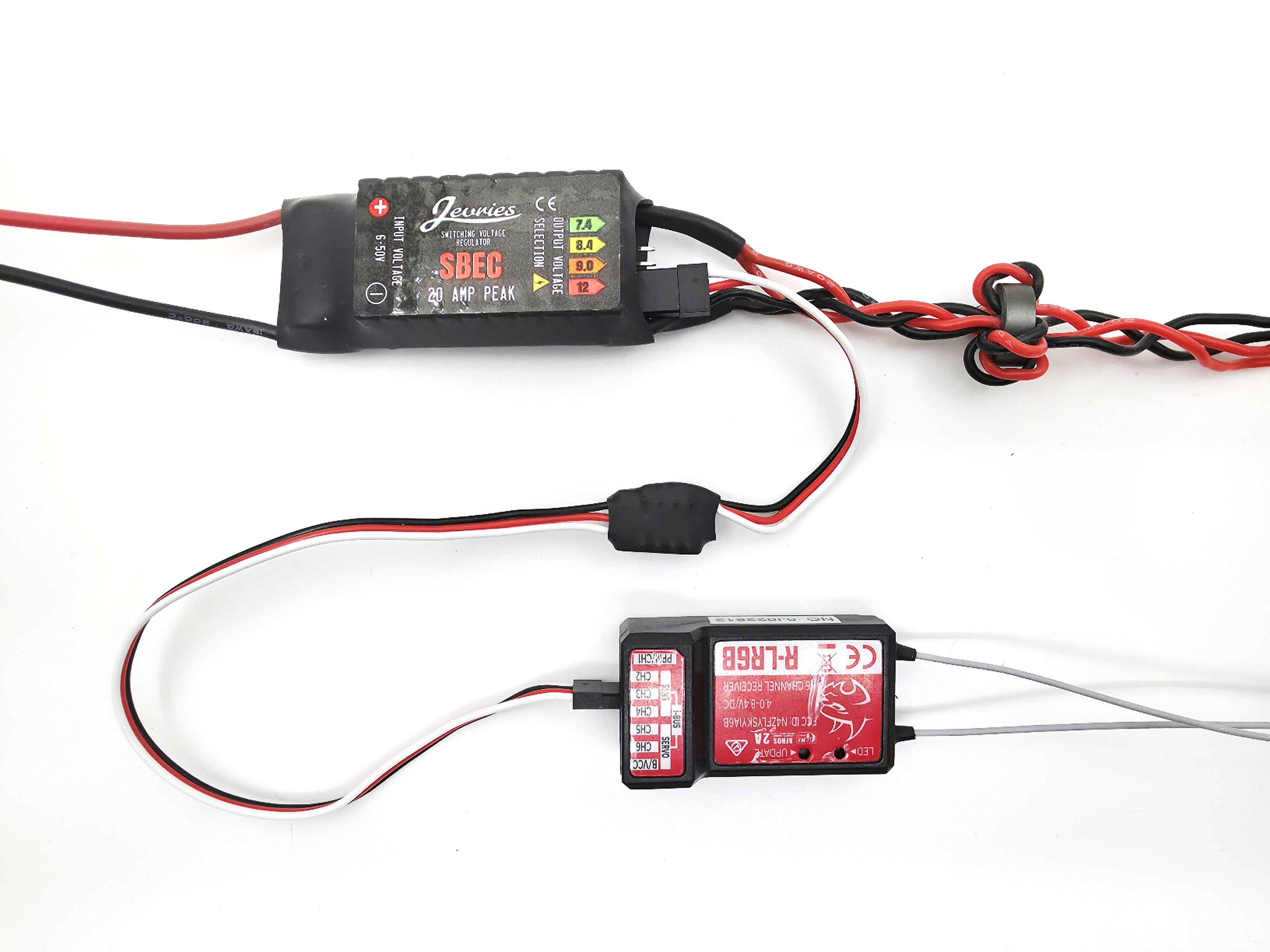

Connection and Use:
- Longest servo wire goes into channel 4 on your receiver
- Shorter servo wire goes on the last 3 pins of the SBEC, 9V/12V with the black wire sitting on the outside
- When you slide switch number 4 on your radio up the RC switch will be activated and a click can be heard 12V is now selected.

Specs:
Peak Voltage: 1A
Input Voltage: 5V- 10V
Size: 15mm X 10mm x 10mm

This item is for Experienced users only as working your RC Lowrider at 12V can result in servo's overheating and burning out. Warranty voided on servo's that are used at 12V!
